Where Is My Key Code?

The key code is the 3 digit number etched into the side of your RVLock key. If you don’t have your key, you can find that key code within the lock.

1. Remove the 4 mounting screws from the lock.
2. Pull the back portion away from the door, you can still have the back portion connected by the wires.

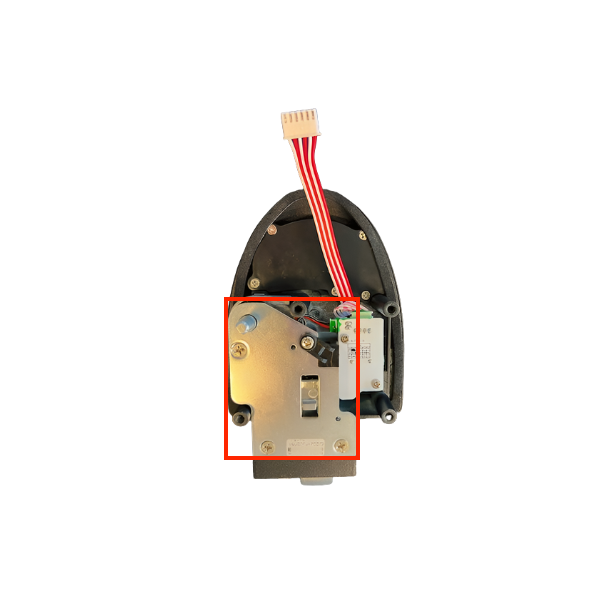

3. Look inside. There is a silver plate that goes over the motor. Depending on the model, there may be a white sticker there that says "KEY CODE: RVL - - - "
4. This 3 digit number is your key code.

If you do not see the white sticker, follow these steps.

1. Unplug the wires
2. Remove the two screws in the side of the door
3. remove the lock from the door
4. Remove the four screws in the silver plate
5. Pull out the silver rod and clutch
6. At the bottom of the clutch housing you will see the 3 digit code.

             Silver Plate                      Silver Rod                       Clutch
